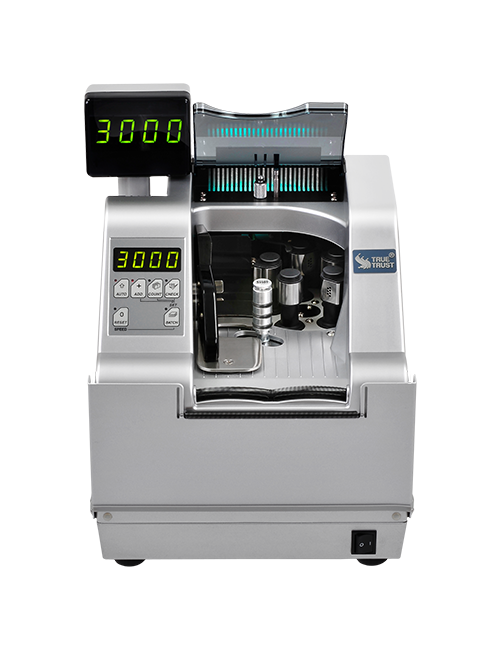

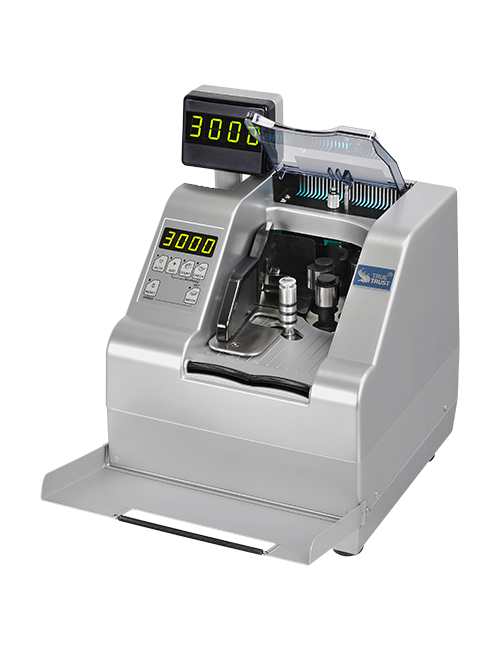

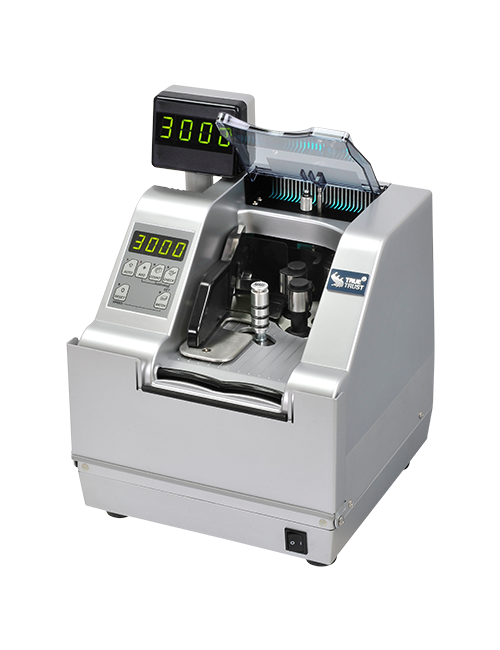

M1-AIR
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)260mm X (D)260mm X (H)285mm
Cover Open Height
95mm
Weight
18 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display

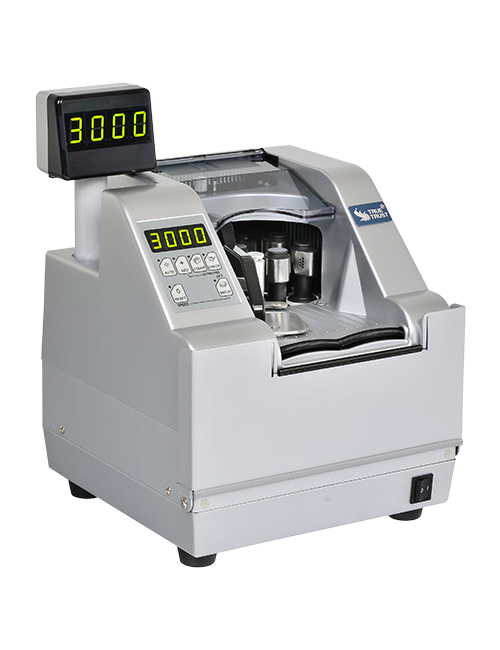

M1-AIR
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)260mm X (D)260mm X (H)285mm
Cover Open Height
95mm
Weight
18 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display

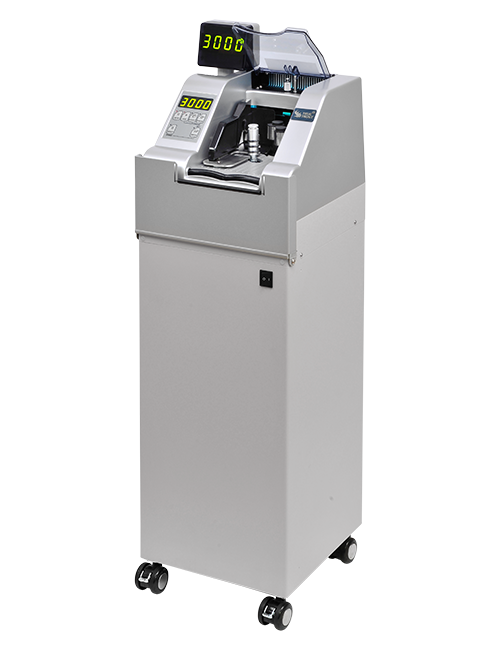

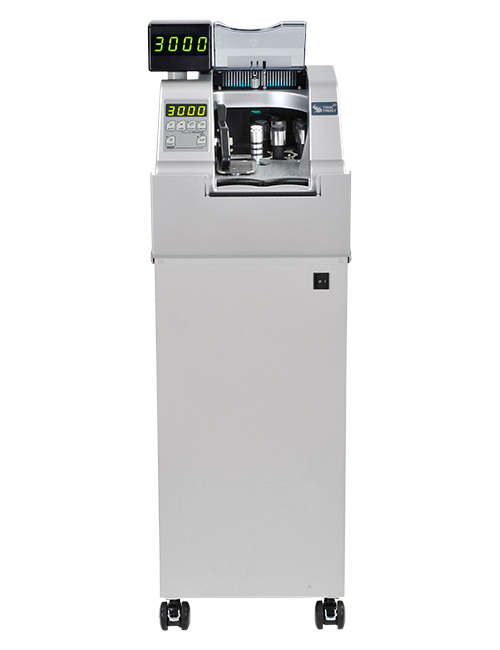

F1-AIR
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)260mm X (D)260mm X (H)785mm
Cover Open Height
95mm
Weight
30.7 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display

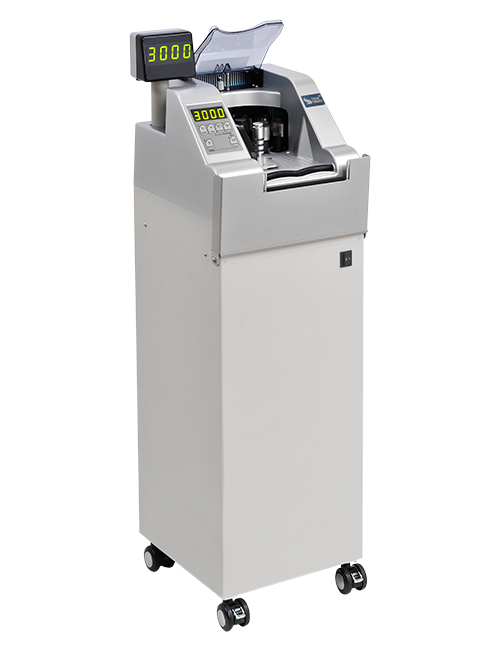

F1-AIR
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)260mm X (D)260mm X (H)785mm
Cover Open Height
95mm
Weight
30.7 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display

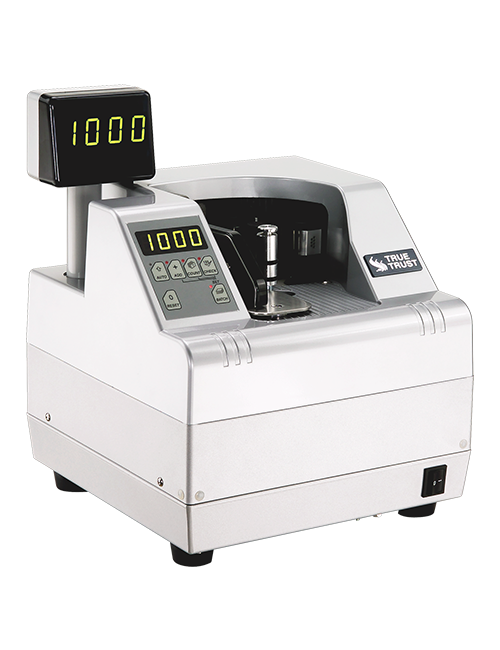

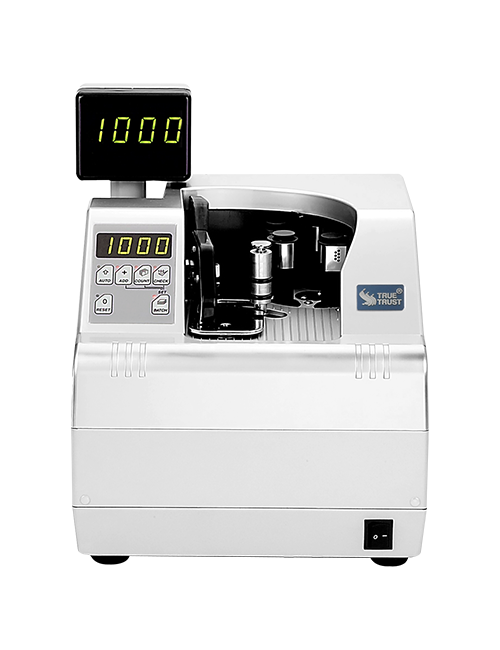

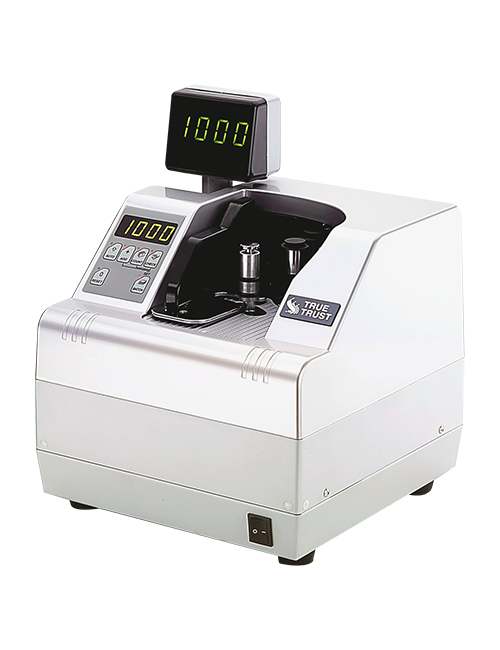

M1
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
2.5 sec/ 100 notes(2400 NPM)
Dimension
(W)260mm X (D)260mm X (H)250mm
Weight
18 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector,Note Plate,Extend Display
M1
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
2.5 sec/ 100 notes(2400 NPM)
Dimension
(W)260mm X (D)260mm X (H)250mm
Weight
18 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector,Note Plate,Extend Display

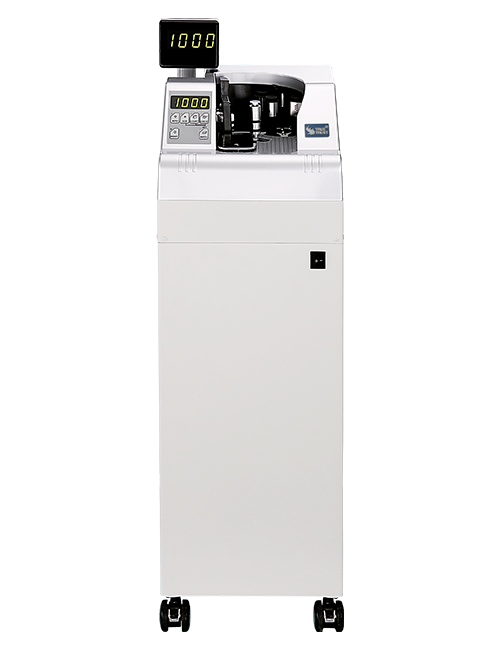

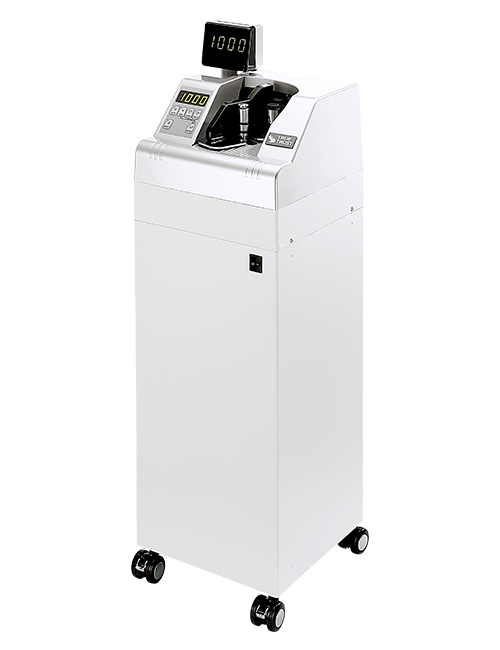

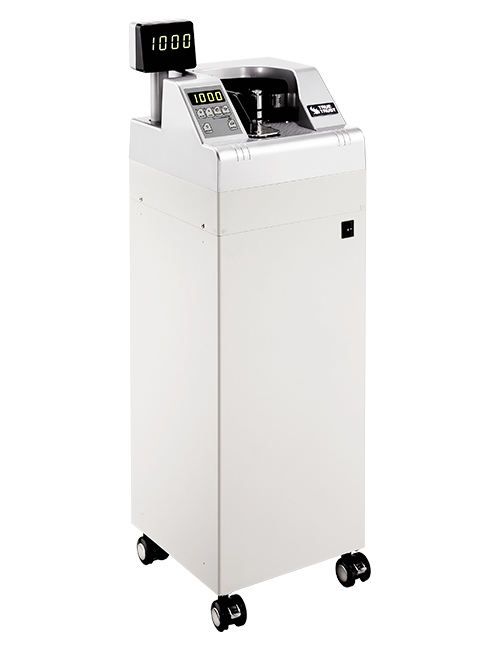

F1
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
2.5 sec/ 100 notes(2400 NPM)
Dimension
(W)260mm X (D)260mm X (H)750mm
Weight
31 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector,Note Plate,Extend Display
F1
Feed System
VACUUM
Countable Note Size
(L)90~300mm X (W)55~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
2.5 sec/ 100 notes(2400 NPM)
Dimension
(W)260mm X (D)260mm X (H)750mm
Weight
31 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector,Note Plate,Extend Display

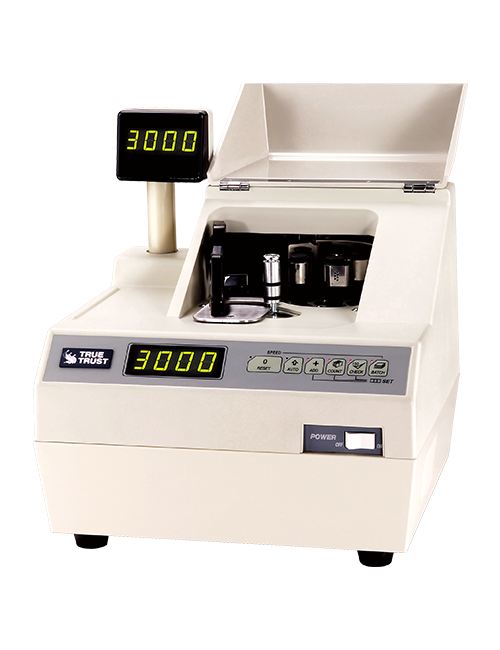

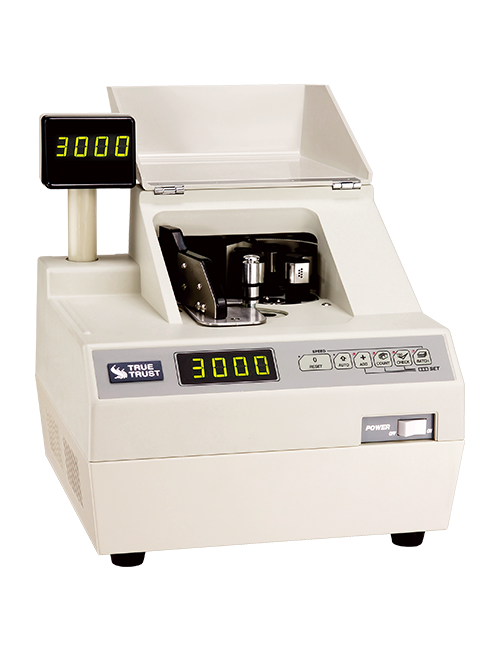

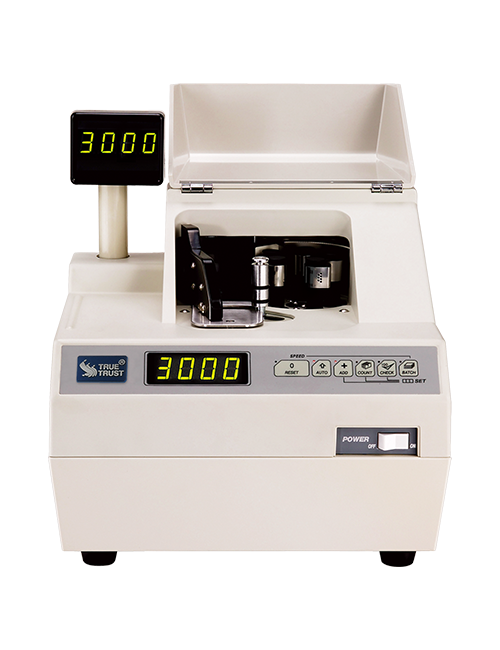

D1(VS)
Feed System
VACUUM
Countable Note Size
(L)95~300mm X (W)60~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)350mm X (D)322mm X (H)295mm
Weight
23.6 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display
D1(VS)
Feed System
VACUUM
Countable Note Size
(L)95~300mm X (W)60~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)350mm X (D)322mm X (H)295mm
Weight
23.6 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display

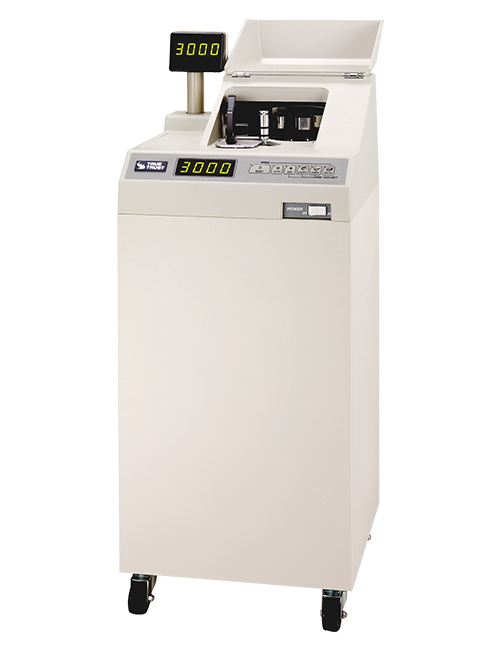

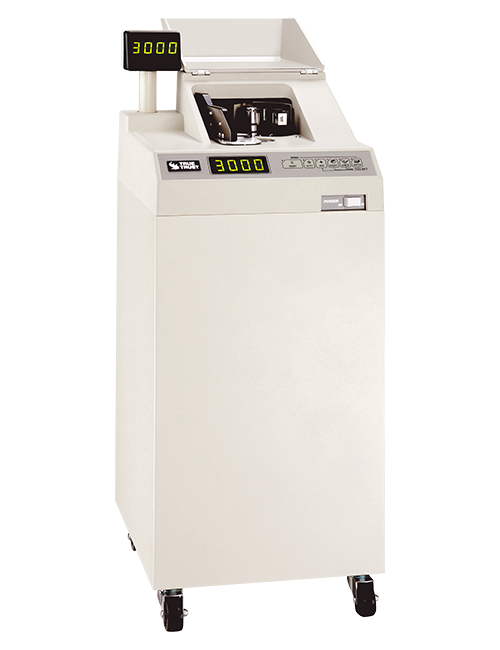

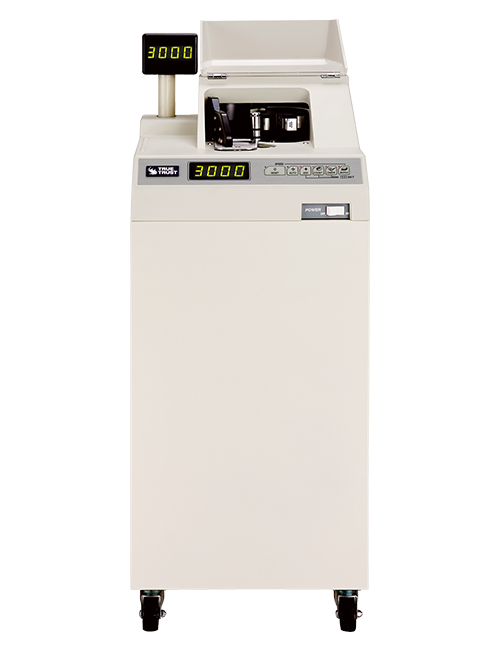

S1(VS)
Feed System
VACUUM
Countable Note Size
(L)95~300mm X (W)60~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)350mm X (D)322mm X (H)895mm
Weight
41.1 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display
S1(VS)
Feed System
VACUUM
Countable Note Size
(L)95~300mm X (W)60~130mm
Thickness:0.06~0.12mm
Holder Capacity
200 notes
Counting Speed
Five variable counting speeds for selection.
2,3,4,5,6 sec/ 100 notes
(3000,2000,1500,1200,1000, NPM)
Dimension
(W)350mm X (D)322mm X (H)895mm
Weight
41.1 kgs
Power Supply
90~130V(50/60/Hz) / 180~260V(50/60Hz)
Options
RS232 Connector, Extend Display
